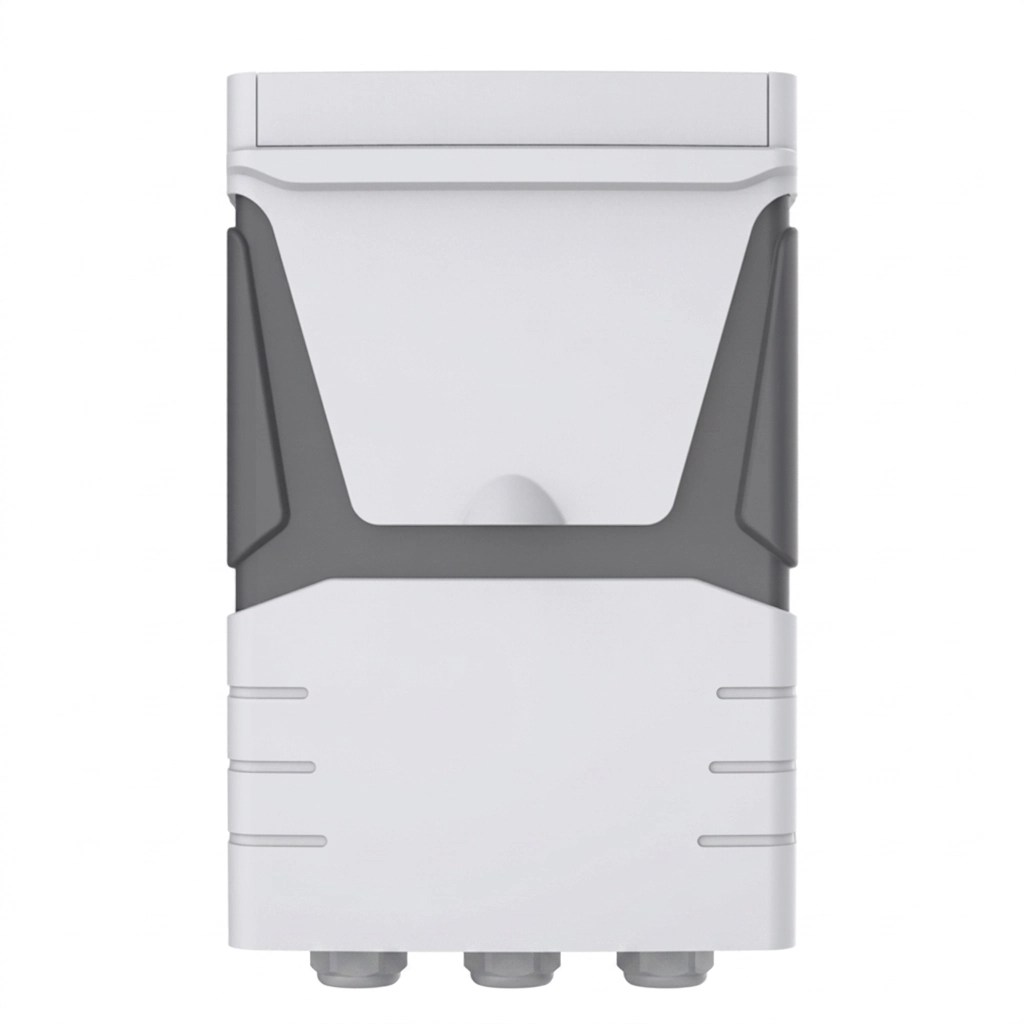

A BAC901A02 2-station automatic backwash filter controller product photo. Front view of the white and grey rectangular housing with grey panels, vertical ribbing, and three lower connectors, on a clean white background.
A BAC901A02 2-station automatic backwash filter controller product photo. Front view of the white and grey rectangular housing with grey panels, vertical ribbing, and three lower connectors, on a clean white background.
A BAC901A02 2-station automatic backwash filter controller product photo. Front view of the white and grey rectangular housing with grey panels, vertical ribbing, and three lower connectors, on a clean white background.
A BAC901A02 2-station automatic backwash filter controller product photo. Front view of the white and grey rectangular housing with grey panels, vertical ribbing, and three lower connectors, on a clean white background.
A BAC901A02 2-station automatic backwash filter controller product photo. Front view of the white and grey rectangular housing with grey panels, vertical ribbing, and three lower connectors, on a clean white background.
A BAC901A02 2-station automatic backwash filter controller product photo. Front view of the white and grey rectangular housing with grey panels, vertical ribbing, and three lower connectors, on a clean white background.

BAC901A02 Automatic Backflushing Controller (2 Stations, AC24V)

The BAC901A02 is a professional-grade 2-station automatic backflushing controller designed for automating the cleaning cycle of water filtration systems. Equipped with an integrated differential pressure (DP) sensor and an intuitive LCD display, it ensures optimal filter performance in agricultural irrigation, sand media, and disc filter systems.

Request a Quote

Product Overview

The BAC901A02 belongs to the premium BAC901 Series Automatic Backflushing Controllers. It serves as an intelligent automatic backflushing control system composed of a built-in computer controller, internal differential pressure (DP) sensor, and flexible programming software. By commanding solenoids, three-way backflushing valves, and hydraulic valves, it triggers efficient backwash cycles sequentially to ensure continuous, uninterrupted clean water supply.

Key Features & Advantages

  • Smart Multi-Trigger Modes: Rinsing cycles can be fully automated and triggered by Pressure Differential (DP) only, Time intervals only, or via Manual Flushing overrides.
  • Integrated DP Sensor: Features a built-in DP sensor with convenient calibration features (zero-point calibration without disconnecting ports).
  • Modular & Scalable Design: The modular structure design can be easily configured and adapted from 1 up to 10 filter units based on user requirements.
  • Heavy-Duty Outdoor Protection: Engineered with a robust modular structure design and IP65 waterproof rating to withstand harsh environmental conditions.
  • Real-Time LCD Monitoring: The clear LCD field screen provides live data tracking, including actual pressure differential values, current backflushing station numbers, and time remaining until the next cycle.
  • Safety Alarms: Safeguarded with advanced alarm features, including low battery power alerts (for DC models) and continuous endless looping backflushing system buzzer alarms.

Technical Specifications

Specification Details
Model BAC901A02
Control Units (Stations) 2 Stations
Input Voltage (Power Supply) AC 110V / 220V
Output Voltage (Solenoid)
