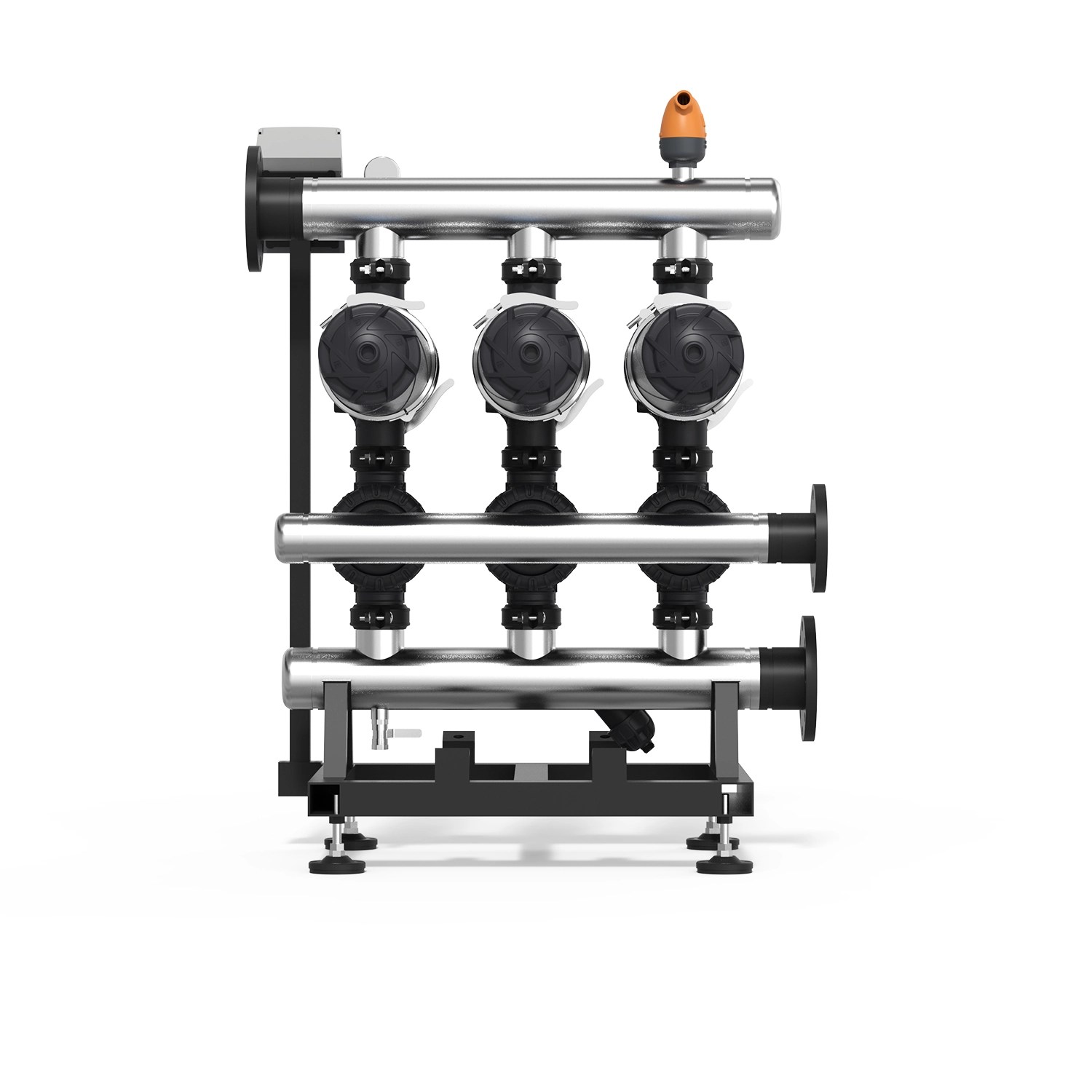

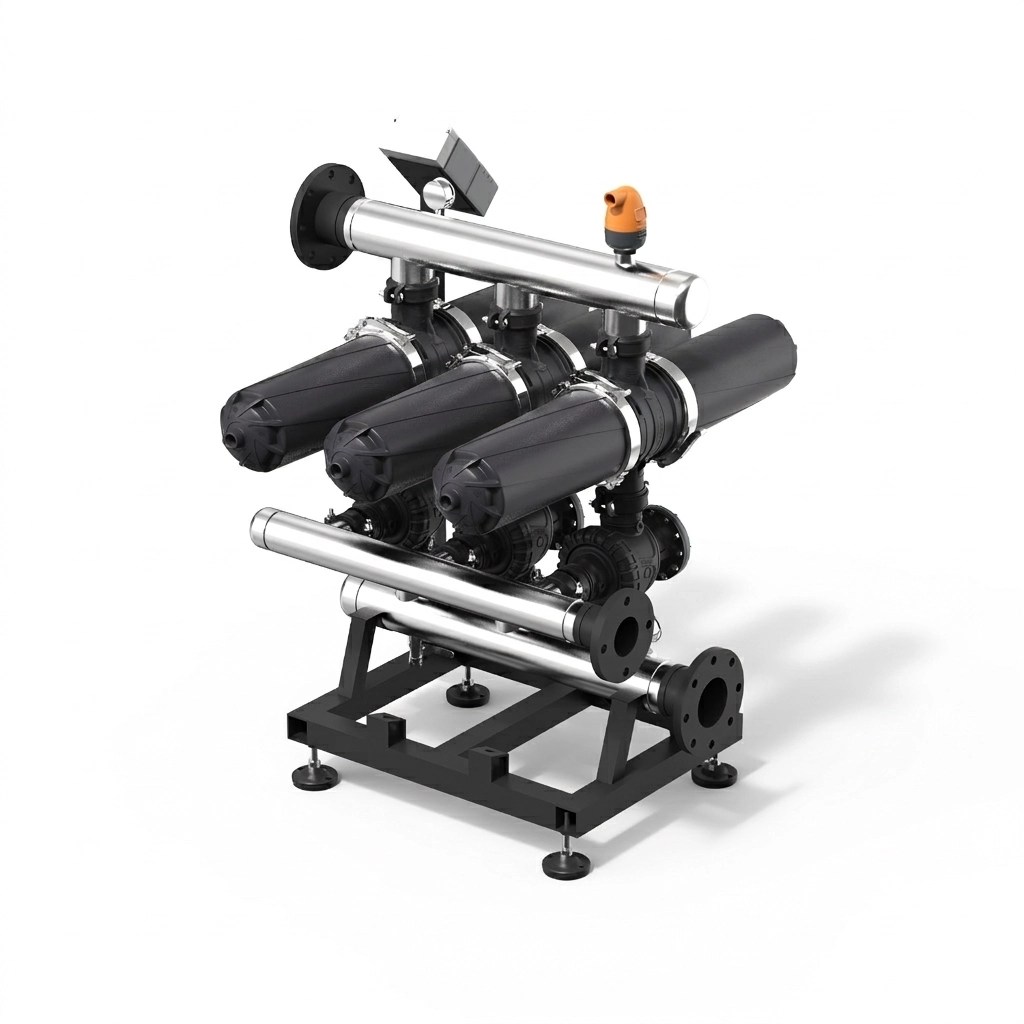

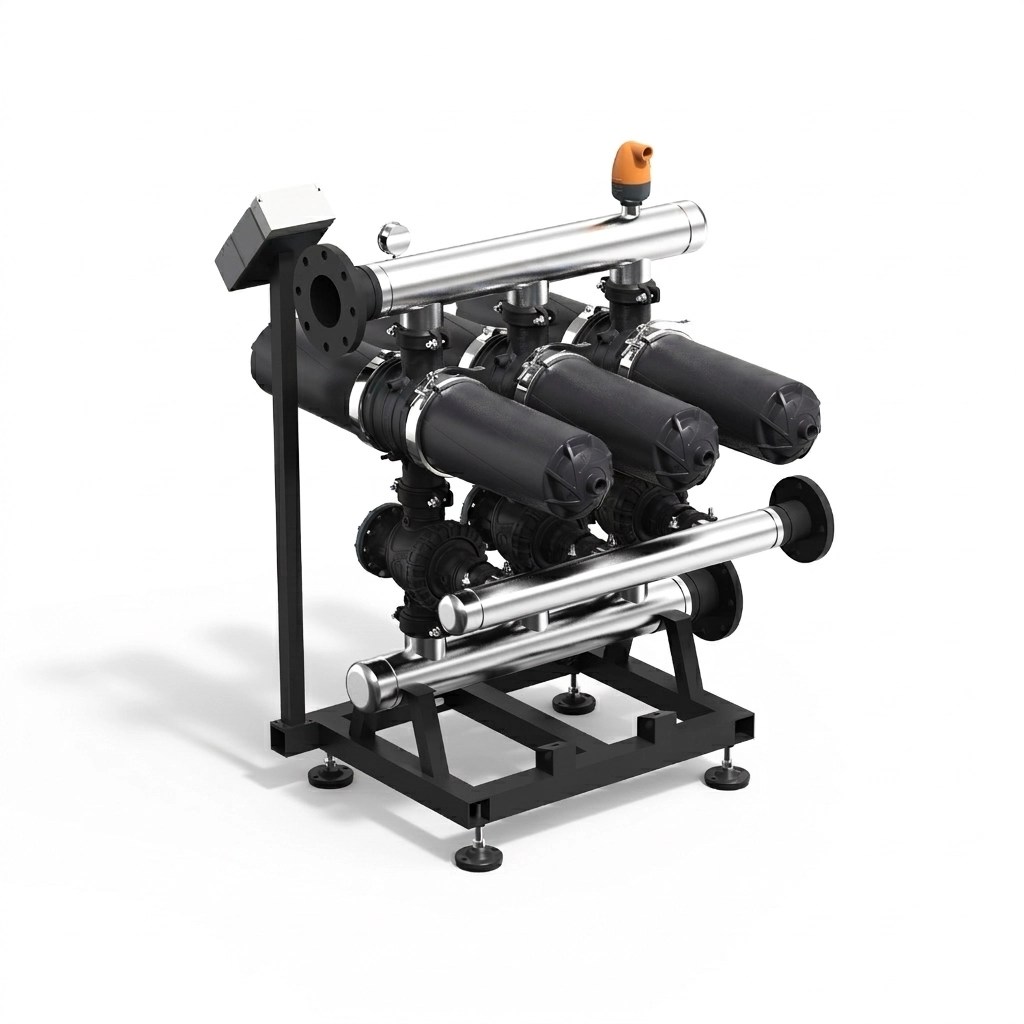

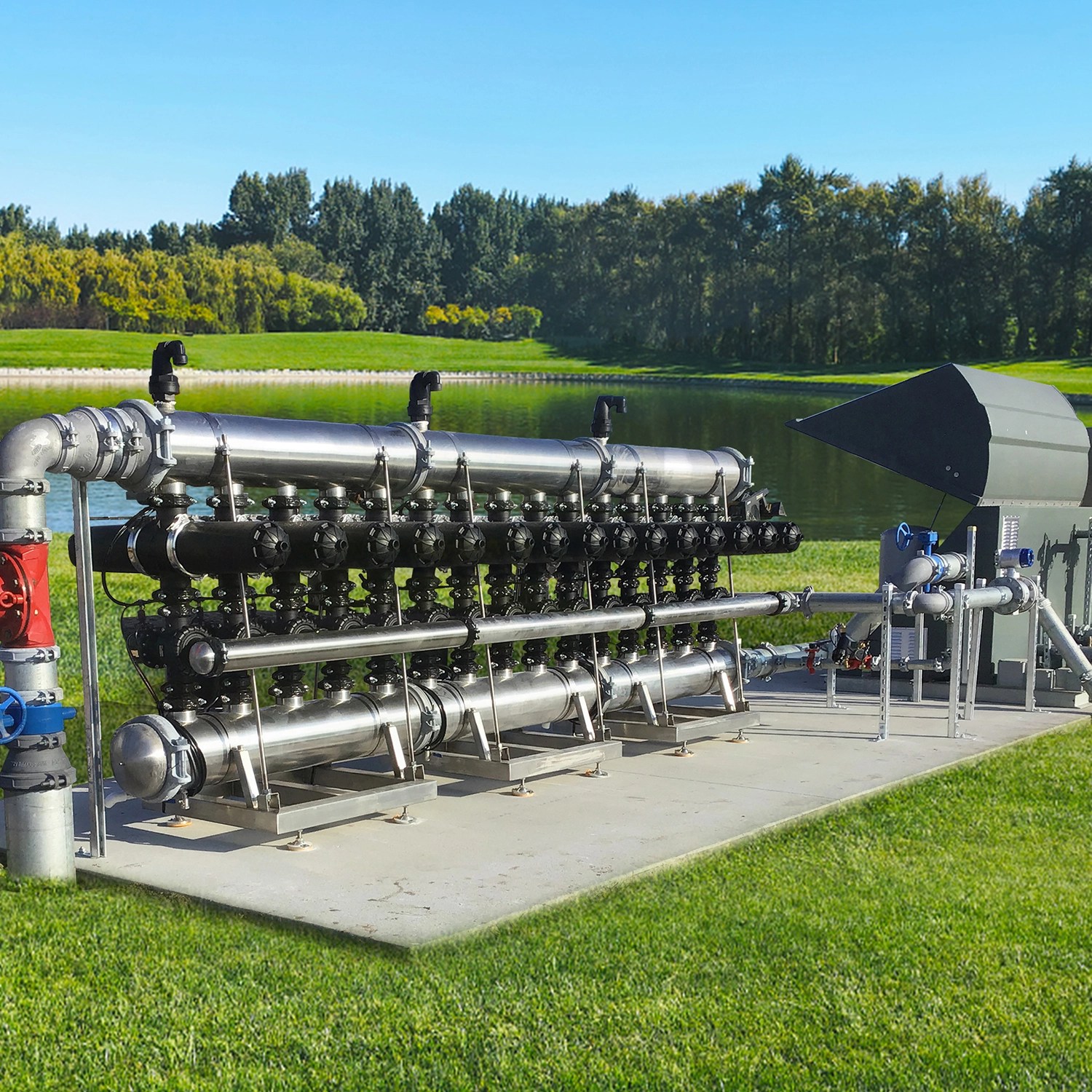

BSS303H6 3″ Series H Type Automatic Disc Filtration System

Product Overview

The BSS303H6 3″ Series H Type Automatic Disc Filtration System is an innovative, self-cleaning water filtration solution configured with 3 modular filter units. Combining precise depth filtration with automated backwash technology, this system effortlessly handles high-load suspended solids, ensuring an uninterrupted clean water supply for commercial, agricultural, and industrial installations.

---

How It Works

1. Filtration Stage

Under the command of the automatic backwash controller, dirty water enters the filter units via the inlet manifold. As water passes through the tightly compressed grooved discs, microscopic particles and contaminants are trapped within the depth grooves, allowing clean, filtered water to exit through the outlet manifold.

2. Automatic Backwashing Stage

When the system reaches a pre-set time interval or a specific pressure differential (DP) threshold, the controller automatically triggers the backwash cycle for each unit sequentially. The 3-way backwash valves reverse the internal water flow direction, instantly decompressing the disc stack. High-speed tangential water jets spray from the internal nozzles, spinning the discs and thoroughly flushing out all trapped debris through the drain manifold. The other units continue filtering water normally during this brief cycle.

---

Available Filtration Grades

Our disc stacks are color-coded to identify different filtration grades based on mesh sizes:

• 400 Mesh (Super Fine Filtration)
• 200 Mesh (Standard Fine Filtration)
• 130 Mesh (Medium Filtration – Industry Standard)
• 100 Mesh (Coarse Filtration)
• 50 Mesh (Extra Coarse Pre-filtration)

---

Key Features & Advantages

• Continuous Uninterrupted Flow: Backwashes one individual filter unit at a time while the remaining stations continue supplying clean filtered water.
• Maximum Reliability with Minimum Maintenance: Self-cleaning mechanism reduces manual labor, completely eliminating down-time.
• Corrosion-Resistant Components: High-grade stainless steel manifolds paired with robust, chemically-resistant composite plastics for ultimate outdoor longevity.
• Smart DP Controller Integration: Fully automated backwash cycles triggered efficiently by real-time Pressure Differential (DP) or time intervals.
• Eco-Friendly & Water Saving: Extremely brief and powerful backwash cycles save massive amounts of rinse water compared to traditional sand filters.

---

Specifications & Parameters

---

Typical Applications

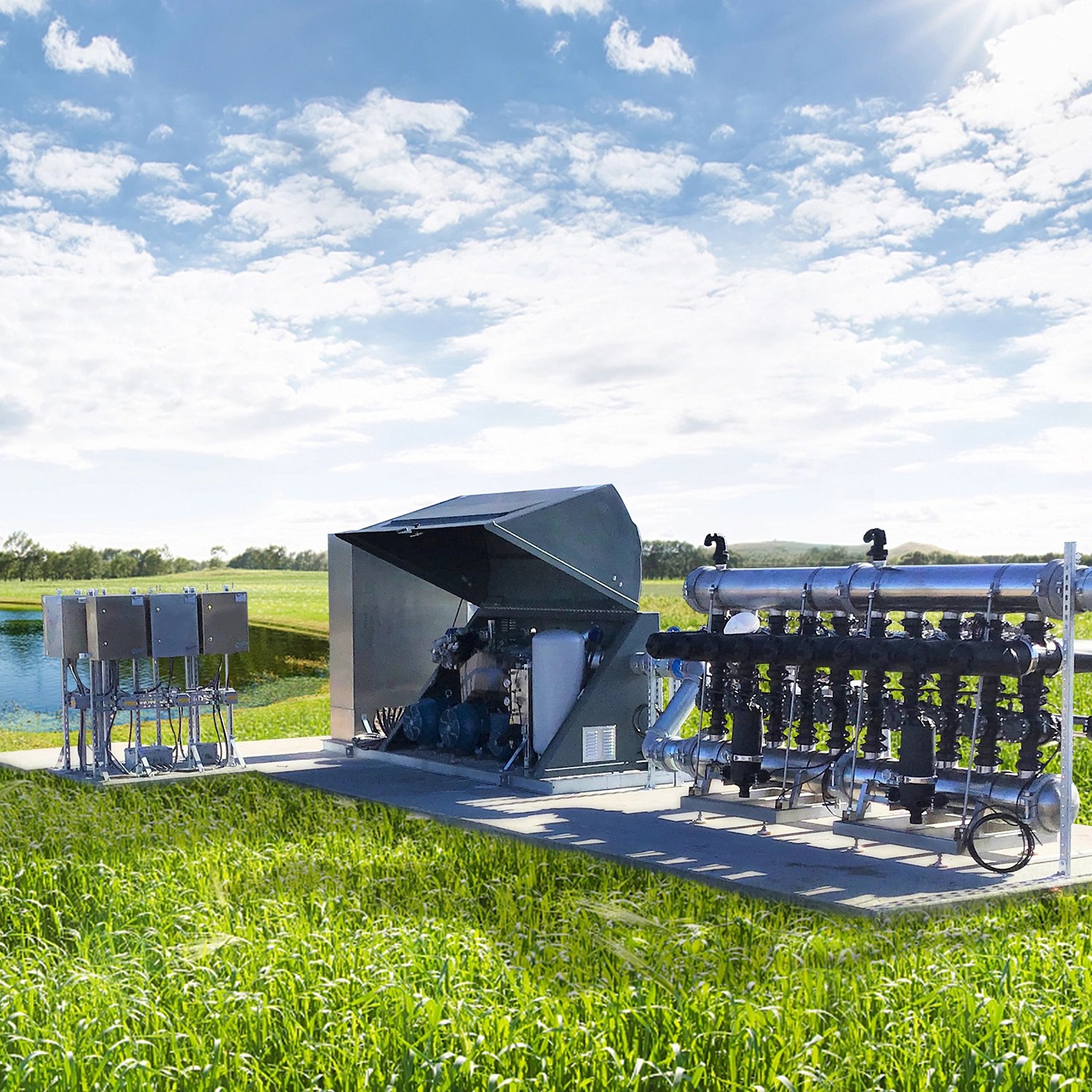

• Agricultural Irrigation: Prevents clogging in micro-sprinkler and drip irrigation systems using surface, river, or well water.

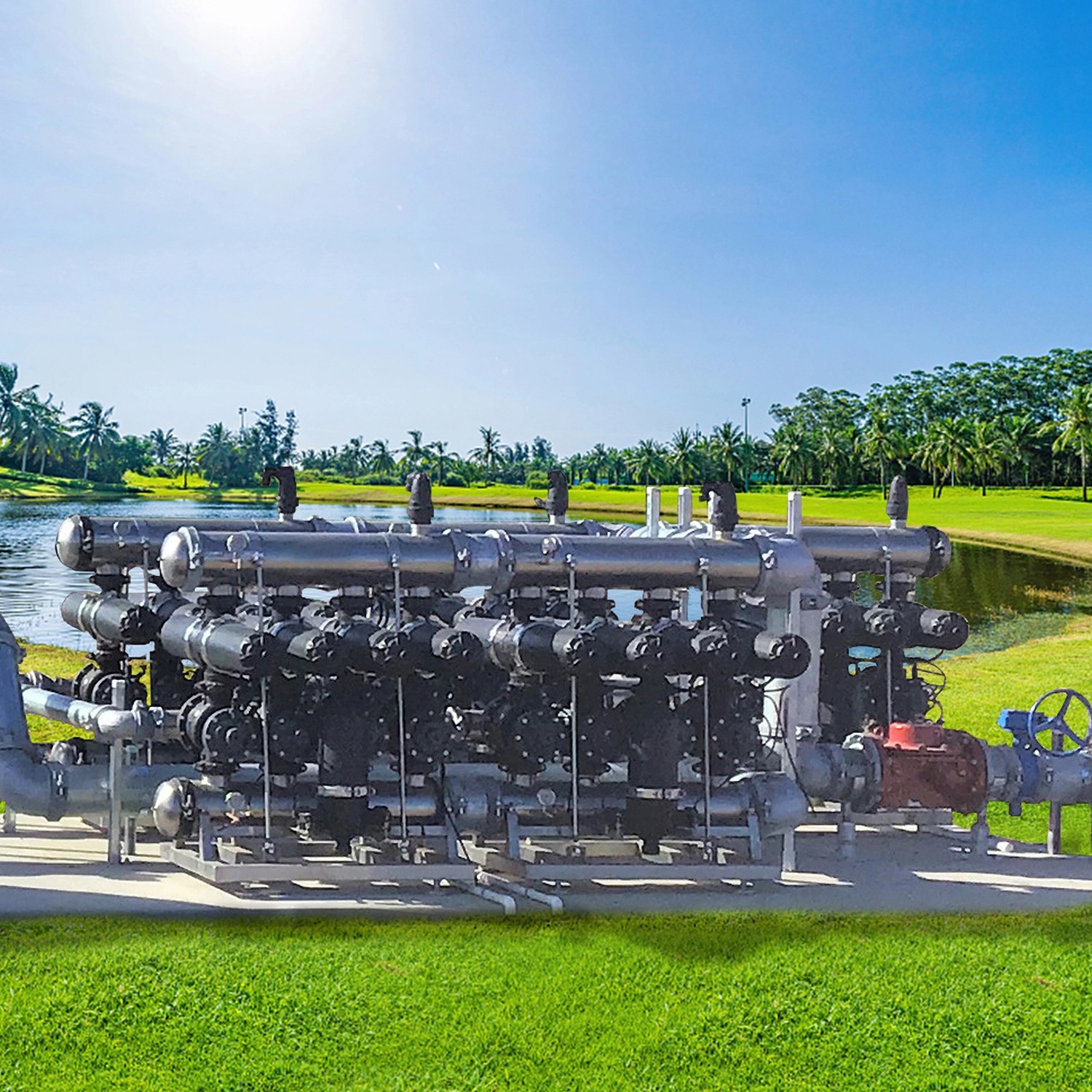

• Garden & Landscape Irrigation: Ensures clean water distribution across massive golf courses, parks, and municipal greenbelts.
• Industrial Water Filtration: Excellent for cooling tower water loops, pre-filtration for RO (Reverse Osmosis) systems, and factory recycled water processing.

---
